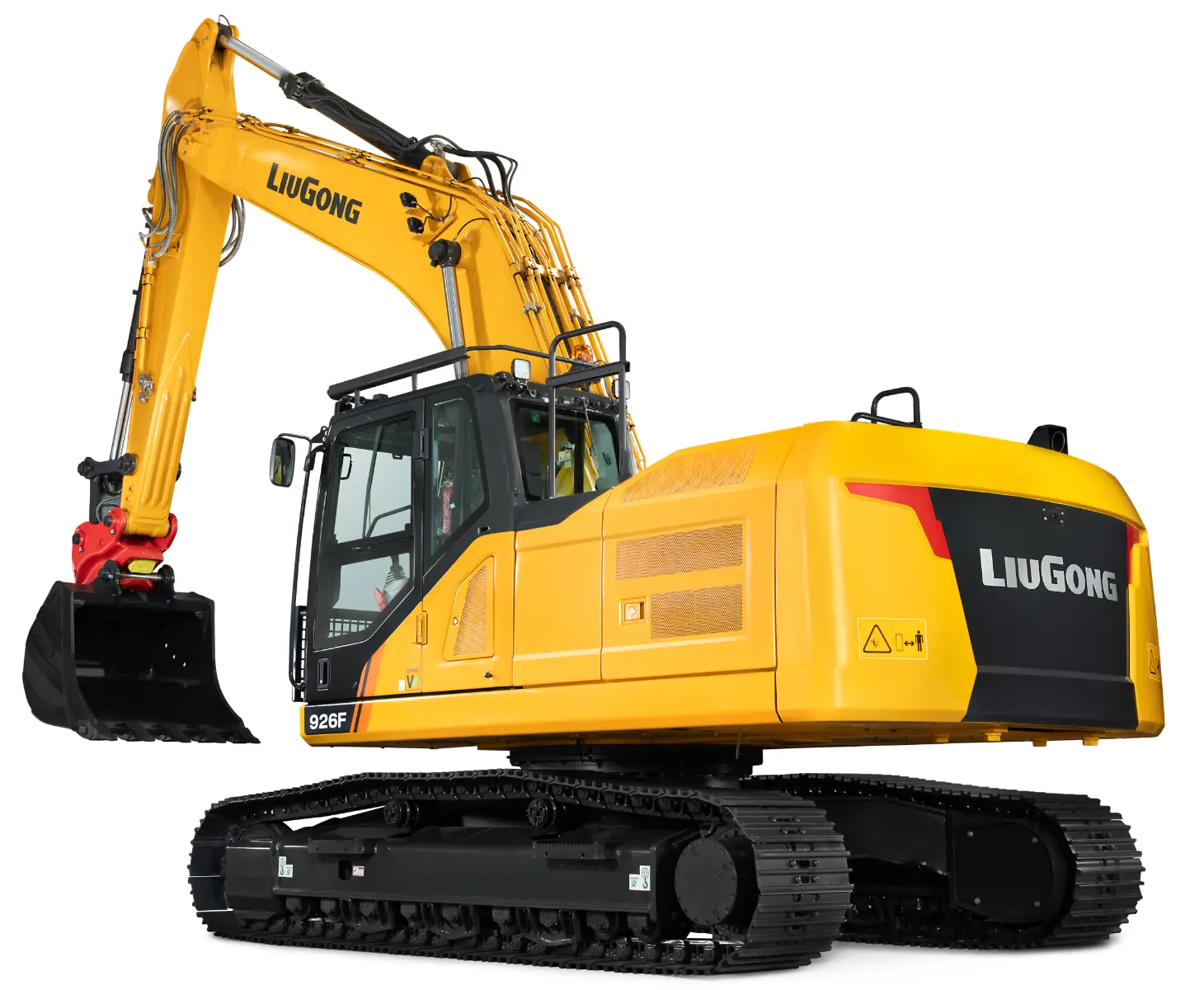

926F
THE BEST MACHINES
ARE DESIGNED
FOR BALANCE,
NOT COMPROMISE...
Engine
Cummins B6.7
Net Power
142 kW
Weight
26,400 - 28,990kg
Bucket Capacity
1.5m3
NO MATTER WHAT YOU DO, YOU’VE GOT TO TRUST YOUR MACHINE 100%
TOUGHNESS & DURABILITY
DESIGNED TO WORK HARDER, FOR LONGER
To build machines that can withstand the hardest conditions takes intelligent design, and attention to detail. We know that a machine is only as strong as its weakest point, so every weld, every joint, every component is scrutinized to ensure it passes our rigorous durability tests. Here’s the proof.
We’ve increased the roller size by 17% making it 47% stronger.
Deeper side beams provide higher impact resistance and make it quicker and easier to add additional impact plates if required.
100% flaw detection ensures every weld is checked to meet our stringent standards.
Choose from our range of performance and durability enhancing extras such as our easy to fit demolition guards and heavy duty counter-weight
Finite element analysis proves the load efficiency and toughness of our boom and arm, but we go further to reduce stress by 35%.
POWER AND EFFICIENCY
DESIGNED TO MOVE MORE, FOR LESS...
There’s no need to compromise digging performance to get the highest fuel efficiency because the all New 926F gives you both. With greater torque and more power at lower engine speeds you get the power you want and the fuel efficiency you need.
With VGT technology, the 6.7L, six-cylinder Cummins engine delivers 5% extra torque compared to high torque at low engine speeds. VGT enables the engine to maximize its power output whilst creating less noise and using less fuel.
Engine Auto Idle and Auto Shutdown make every single drop of fuel count. Reducing unproductive fuel saves you money and helps protect the environment.
When it comes to efficiency, the 926F is smarter than you’d think. Feed Forward control technology matches the engine’s speed to the operator’s command and predicted load to deliver even greater fuel economy
We are always improving our performance, with fuel consumption reduced by 20% and efficiency increased by 10% compared to the 925E, we have delivered on that promise.
Divided into 3 groups for independent control, our intelligent fans automatically adjust to match the hydraulic oil and coolant temperature, and the requirements of the air conditioning condenser. The results are impressive.
WHY CHOOSE BETWEEN POWER AND EFFICIENCY WHEN YOU CAN HAVE BOTH?
The all New 926F let’s you do more, for less cost, and with less environmental impact, don’t settle for anything less.
TOUGH MACHINES CAN BE INTELLIGENT TOO
INTELLIGENCE AND CONTROL
DESIGNED TO WORK SMARTER
Smart operators choose smart machines because they know their job is tough enough. When it comes to intelligence and control the all New 922F may surprise you as it’s packed with smart features to make life easier.
With a choice of 3 Integrated Work Modes each designed to match the engine speed, pump flow and system pressure to your chosen application, it’s easy to find the perfect balance of performance and economy.
The state-of-the-art full electro-hydraulic system from Kawasaki provides lightening fast signals between the joysticks, pumps and valve blocks to deliver pin point precision and maximize available engine power.
With a suite of Smart functions at your fingertips you can control your attachment properties from the comfort of your cab. It’s easy:
Adjustable flow control
Adjustable pressure control
10 attachment settings
Adjustable flow control
Adjustable pressure control
10 attachment settings
The electronically controlled main pump displacement has increased by 12% to 130 cc. The larger pump can deliver more torque at lower engine speed compared to E Series.
Improves performance and prolongs tool life by preventing excessive pressure during breaking applications.
This smart function reduces fuel consumption by allowing the boom to fall under its own mass.
This smart function reduces fuel consumption by allowing the boom to fall under its own mass.
COMFORT AND ERGONOMICS
DESIGNED AROUND THE OPERATOR

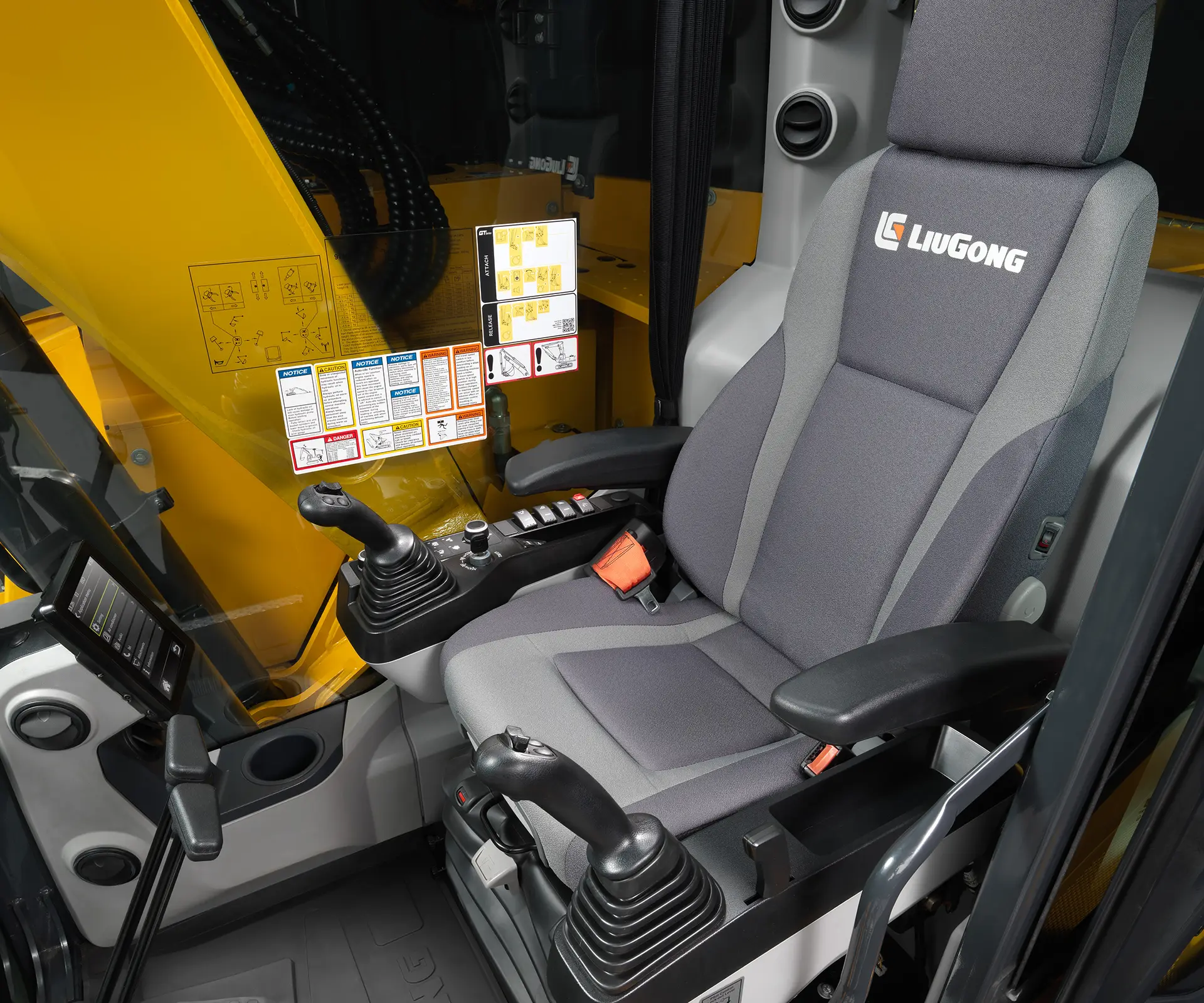

Climb into the spacious cab and you’ll know that it has been designed by a team that really knows what its like to be an operator. Talking, listening and observing operators, our design team spend almost as much time in the cab as they do with the CAD. The result? One of the most ergonomic and comfortable cabs you can get.
From the ergonomically positioned non-slip pedals to the multi-functional joysticks, the cab interior represents a masterclass in design.
Every action and movement requires the minimum of effort from the operator.
Boom float, travel speed and proportional auxiliary controls are customizable and finger tip controlled - you can even mute your music!
Every action and movement requires the minimum of effort from the operator.
Boom float, travel speed and proportional auxiliary controls are customizable and finger tip controlled - you can even mute your music!
Every operator is different, so we offer a range of seats and joystick configurations to suit everyone.
Mechanical suspension standard seat.
Comfort level, air suspension seat with adjustable lumbar support.
Luxury level, heated air suspension seat with adjustable lumbar and premium padding.
Mechanical suspension standard seat.
Comfort level, air suspension seat with adjustable lumbar support.
Luxury level, heated air suspension seat with adjustable lumbar and premium padding.

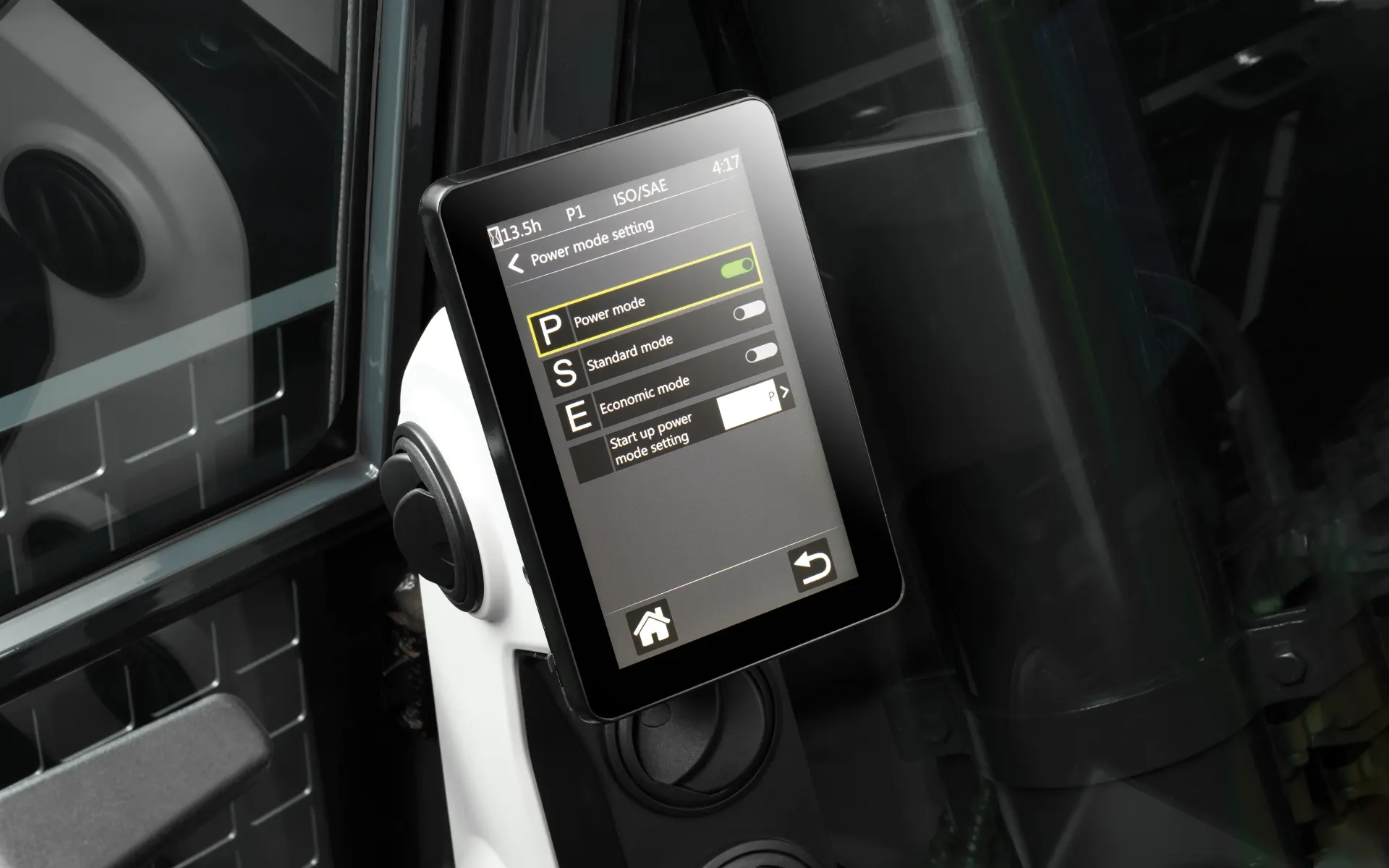

We’ve designed the operator interface to be even more intuitive and easy to use. The large 8-inch LCD colour screen can be controlled via touchscreen or by a fingertip navigational control dial conveniently sited in the armrest control panel.
We never forget that a machine is not just a tool, it’s your place for many hours a day (and night). So, we’ve remembered all the little things that make it feel like home.
Cool box for food & drinks
Large storage box and rack
Drinks holder
Phone holder with 12V charging, USB and
AUX ports
Cool box for food & drinks
Large storage box and rack
Drinks holder
Phone holder with 12V charging, USB and
AUX ports
The NVH design reduces wind resistance and noise. Compared with traditional direct-drive fans our new electronic fans are quieter by 9% helping to achieve a low in cab noise of only 68dB(A).
WE CONSTANTLY ASK... HOW CAN WE MAKE OUR MACHINES EVEN SAFER
SAFETY AND VISIBILITY
SAFER ALL-ROUND ACCESS
Being protected in the cab is important, but accident research shows us that most accidents occur outside of the machine. We’ve taken the challenge to make our machines even safer to be around.
The driver protection system delivers even greater protection to the front and top of the cab and protects the operator from falling rocks and debris. The front screen has a hinge design making cleaning and maintenance easier.
The new 0.5m wide stepped boarding channel with non-slip treadplates makes
getting on and off the machine safer.
The engine compartment features a gripped access platform.
Optional guard rails or integral fences on the left and right sides of the upper
platform increase safety and can be folded down for easy transportation.
getting on and off the machine safer.
The engine compartment features a gripped access platform.
Optional guard rails or integral fences on the left and right sides of the upper
platform increase safety and can be folded down for easy transportation.
Our cab design provides the operator with the very best view of the site, from every angle. Smart design ideas such as integrating the steps into the line of the cabin, improve visibility on the right hand side giving a 180 degree view.
With 360 degree camera as standard in Europe, you can get an uninterrupted panoramic view around the machine at all angles from the large LCD screen.
The highly visible hydraulic isolation lever can easily be seen outside of the cabin by pedestrians to raise awareness of active machinery.
No need to climb on the machine, all the daily maintenance points, including the oil level check point are easily accessible from the ground.
LED work light for better night visibility are fitted as standard.
MAINTENANCE AND UPTIME
EASY TO OWN AND EASY TO MAINTAIN
We understand that when your machine’s not working, it’s not earning. To maximize your productive hours, we’ve made the All New 926F even easier to maintain, helping you make every productive second count.
Maintenance should be simple so to save you time, all engine oil filter replacement cycles have been synchronized.
We’ve increased the storage space behind the cab and added a segregating tray to create a useful space for your maintenance kit such as grease guns and lifting equipment.
Convenience and safety should never be compromised.
The easy to access optional re-fuelling pump is safely stowed behind the bay door.
All filters are located close to the bay doors for safe access and speedy maintenance.
Low level access to DEF tank reduces the need to climb up onto the upper structure.
The easy to access optional re-fuelling pump is safely stowed behind the bay door.
All filters are located close to the bay doors for safe access and speedy maintenance.
Low level access to DEF tank reduces the need to climb up onto the upper structure.
By grouping the greasing points together on the boom base, top of the dipper and slew bearing we make daily maintenance faster and easier. Optional automatic lubrication pipeline gives you easy access to all the lubrication points in one place, saving you even more time on daily maintenance.
Our red-designed air filter with large ash capacity now has a 1000-hour maintenance cycle – that’s one job less to think about.
Specification
Download a brochure926F - STAGE V
Maximum operating weight
28 990 kg
Minimum operating weight
26 400 kg
Engine power
142 kW (190 HP)
Bucket capacity
1,5 m³
Maximum travel speed (High)
-
Maximum travel speed (Low)
-
Maximum swing speed
10,5 turns/min
Arm breakout force
-
Arm breakout force Power boost
-
Bucket breakout force
-
Bucket breakout force Power boost
-
Shipping length
10 210 mm
Shipping width
-
Shipping height
3150 mm
Track shoe width (std)
-
Boom
6000 mm
Arm
2980 mm
Digging reach
10 340 mm
Digging reach on ground
10 135 mm
Digging depth
6925 mm
Vertical wall digging depth
6090 mm
Cutting height
10 075 mm
Dumping height
6920 mm
Minimum front swing radius
1660 mm
Model
-
Emission
Stage V
System maximum flow
55L/min
System pressure
-
